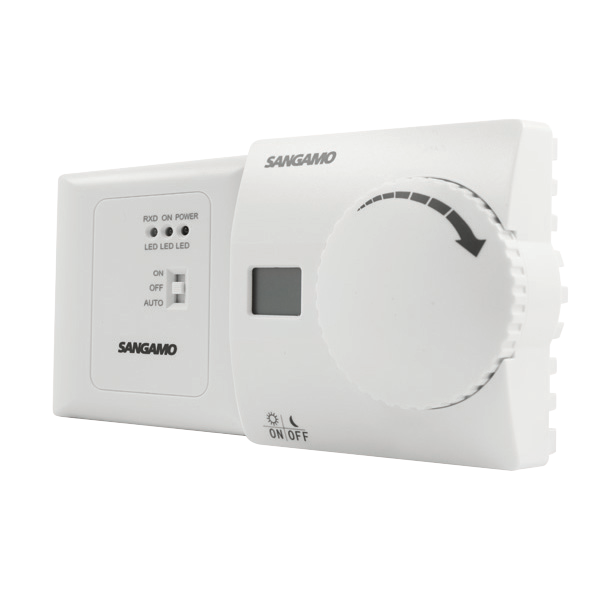

SANGAMO DIGITAL WIRELESS ROOM THERMOSTAT

Stock Code: CHOICE-RSTAT3RF

Descriptions

The Choice RSTAT3 RF is a non-programmable wireless room thermostat designed to be simple to use whilst bringing you comfort and energy economy. Comprising of a battery powered thermostat (transmitter) and a separate relay unit (receiver). The transmitter is intended for wall mounting in the main living area in your house with the receiver being mounted close to the boiler.

In addition to ON/OFF control the unit provides the option to regulate your heating system using the two temperature, Comfort/Economy switch.

Designed to provide simple automatic control of your heating systems, by sensing the air temperature and switching on the heating when the air temperature falls below the thermostat setting and switching off when temperature is reached.

Transmitter

Power Supply: 2xAA 1.5V batteries

Battery Lifespan: 1 year

Temperature Adjustment Range: 5-30°C

Temperature Display Range, Scale: 3-51°C, 1°C

Temperature Frost Protection: 5°C (non adjustable)

Switching Differential: +/-1°C

Dimensions: 86 x 86 x 32mm

Transmission Frequency: 433Mhz

Transmission Distance: 80m open, 30m indoors

Mounting Method: Wall/Surface

Receiver
